MOTOR BEACH ( ZC - ATV - 03 )

ZC-ATV-03 Overall Dimension :1510×950×1010mmProper Mass of Empty Vehicle: 135kgDistance between axles: 1010mmDistance between front wheels: 650mmDistance between rear wheels: 670mmGround clearance: 150mmMax speed: ≥45km/hClimbing Ability: ≥15°Specification of Front Wheel: 19×7-8, 30KpaSpecification of Rear Wheel: 18×9.5-10, 25KpaType of Engine: IP52QMIBore*stroke: 52.4mm×39.2mmEfficient Capacity: 124.6mlRated Power and Rotate Speed: 5.2KW/7000r/minMax Torque and Rotate Speed: 5.6N.m/6500r/minCompressing Ratio: 9.1:1Gearshift Mode: stepless variable speedStarting System: Electric and kick-back startingCooling System: strong air cooledTank fuel capacity: 7.5LCARTON SIZE: 1480*810*910MMGross weight: 155KGQuantity/20GP/40GP: 30pcs/20GP 60cps/40GPDisplacement:110cc/125cc/150cc/200cc250cc/4stroke

DIRT BIKE ( ZC - Y - 303 )

ZC-Y-303 Front and rear disc brakes Fluid shock absorption on front and rear wheel Tire:wire spoke wheels Engine:4-stroke,one cylinder, air cooled Displacement:50cc/90cc/110cc Load capacity:60kg Tank volume:3400ml Tire diameter: a)Front wheel:2.5-14" b)Rear wheel:3.0-12" Fuel:gas oil Start system:electric start or kick start Max.speel:≤70km/h Packing: Carton dimensions:137cx38cx76cm N.W.:57kg G.W.:68kg Qty/40'HQ:144pcs

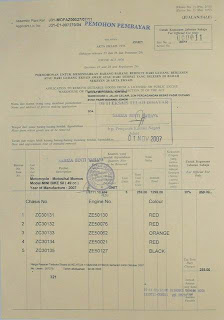

CERTIFICATE OF JPJ

DIRT BIKE ( ZC - Y - 405 )

ZC-Y-405 Engine: Single cylinder, 125cc,Four-stroke, Air-cooled ,oil-coolied Drive System: Manual(international gear) Transmission: Chain Start Method: Kick start Fuel Capacity: 3.0 L Front Suspension: Hydraulic suspension(Reverted) Rear Suspension: Single spring suspension(air pressure) Front Brake: Hydraulic disc brake Rear Brake: Hydraulic disc brake Front Tire: 2.50-14 Rear Tire: 3.00-12 Max. Speed: 70 KM/Hour

DIRT BIKE ( ZC - Y - 403 )

ZC-Y-403 Engine : 110c.c, 4-stroke ( single cylinder, air cooled ) Tank Capacity : 2.5L Fuel : gasoline Max Speed : 65km/h Tire ( front and rear ) : 2.5-14-4 / 3.0-12-4 Max Loading : 150kg Max Range : 70km/full tank GW/NW : 53/58kg carton size : 148X38X88cm Container : 40'HQ/144pcs

DIRT BIKE ( ZC - Y - 401 )

ZC-Y-401 Engine: 50cc 110cc, 4-stroke, single cylinder, air cool Transmission system: chain drive through automatic clutch Tire (front and rear): 12x 3.0 inches/14x2.4inchesAvailable color: red, yellow, blue, green, blackTank capacity: 2.5LFuel : gasolineMax speed: 60km/hStart system: electric and manual startMax loading: 150kgMax range: 70km/full tankGW/NW: 72/69kgPacking size : 137*38*76cm

DIRT BIKE ( ZC - Y - 309 )

ZC-Y-309 Engine:Single cylinder,125cc,Four-stroke,Air-cooledDrive System:Manual(international gear)Transmission:ChainStart Method:Kick startFuel Capacity:3.0LFront Suspension:Hydraulic suspension(Reverted)Front Suspension:Single spring suspension(air pressure)Front Brake:Hydraulic disc brakeRear Brake: Hydraulic disc brakeFront Tire:2.5-14Rear Tire:3.00-12Max.Speed:70KM/HourCarton Quantity:75pcs/20ft,150pcs/40ft,176pcs/40HQ

DIRT BIKE ( ZC - Y - 307 )

ZC-Y-307 Engine: 125cc, 4stroke, single cylinder, air coolTank capacity: 2.5LFuel : gasolineMax speed: 65km/hTire (front and rear): 2.5-12 /3.0-12Max loading: 150kgMax range: 70km/full tankGW/NW: 53/58kgcarton size : 143*40*72cmContainer : 40’HQ/162pcs

DIRT BIKE ( ZC - Y - 306 )

ZC-Y-306 Engine: 125cc, 4stroke single cylinder, air cooled Tank capacity: 2.5LFuel : gasolineMax speed: 65km/h Tire (front and rear): 2.5-14 -4/3.0-12-4Max loading: 150kg Max range: 70km/full tank GW/NW: 53/58kg carton size : 150*38*80cmContainer : 40’HQ/144pcs

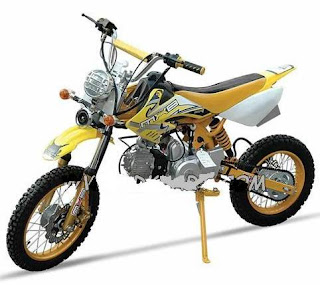

DIRT BIKE ( ZC - Y - 303A )

ZC-Y-303A Front and rear disc brakesFluid shock absorption on front and rear wheelTire:wire spoke wheelsEngine:4-stroke,one cylinder, air cooledDisplacement:50cc/90cc/110cc/125ccLoad capacity:60kgTank volume:3400mla)Front wheel:2.5-14"b)Rear wheel:3.0-12"Fuel:gas oilStart system:electric start or kick startMax.speel:≤70km/h Carton dimensions:137x38x76cmN.W.:57kg G.W.:68kgQty/40'HQ:144pcs

GP BIKE 49c.c ( MT - A5 )

MT – A5
Engine:48cc,single cylinder, water-cooling,2 strokeOil type:petrol,1:25 engine oil mixingTank capacity:1.5LDriving mode:chainWhee.:13’Brake system:disc brakeMax speed:80km/hRange:80kmMax loaded :150kgCarton size:1100*380*600mmG.W./N.:29.5/27kgQuantity:20Ft/110pcs,40Ft/220pcs.40HQ/265pcs

GP BIKE 49c.c ( MT - A2 )

MT-A2 Engine: 49cc single cylinder, water-cooling. 2stroke Qil type: Petrol, 1: 25 engine oil mixing Max torque and rotate speed: 4.5N. M/4500rpm Tank capacity: 1.5L Driving mode: Chain Start: Pull start Whee.: 13' Brake system(front/rear): Disc brake Max Load: >110kg G. W. /N. W: 25/23kg Container: 160pcs/20'GP 250pcs/40'GP 280pcs/40'HQ

DIRT BIKE 49c.c

Engine:49cc.2stroke.air cooled Packing Size:113*28*76cm G.W./N.W:22/24kg Quantity:126pcs/20’FCL 246PCS/40’FCL 281PCS/40’HQ

GP BIKE 49c.c

Engine:49cc single cylinder,water-cooled.2strokeQil type:petrol,1:25 engine oil mixingMax torque and rotate speed:4.5N.M/4500rpmTank capacity:1.5LDriving mode:chalnStarting sytem:pull startWhee.:13’tubelessBrake system(front/rear):disc brakeMax Lladed:＞110kgG.W./N.W:25/23KGSQUANTITY:20ft/125pcs,40ft/25pcs,40HQ/280pcs

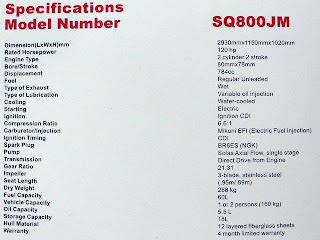

JET MOTOR SQ800JM

JET MOTOR 760c.c

Maximum people on board:
2 persons
Engine:
760CC, two cylinders, water-cooling, 2 stroke
Displacement:
754 cc / 46. 0 ci
Compress ratio:
6. 6: 1
Lubrication system:
Variable oil injection
Oil capacity:
5. 5L
Starting system:
Electric start
Spark plug:
0. 6 mm - 0. 7 mm / 0. 023 in - 0. 027 in
Batteries:
12V, 19Ah
Propulsion system:
Jet pump
Transmission:
Direction drive from engine

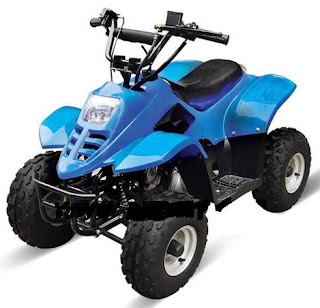

MOTOR BEACH ( ZC - ATV - 02 )

ZC-ATV-02 Displacement:49.28ccEngine type:Forced-air-cooled 2-strokeWheel base(mm):805Ground clearance(mm):100Bore&Stroke(mm):38mm*43mmStarting:Electric with hand pullLoading Weight(kg):40Fuel Capacity(L):1.5Max speed(km/h):24Max.power(kw/r/min):1.6/5500Tire(F and R):145/70-6 2PRTTBrake(F):drum,manualLOADING Q’TY：43pcs/20" 87pcs/40" 104pcs/40HQ"

MOTOR BEACH ( ZC - ATV - 04A )

ZC-ATV-04 AEngine: 50cc/110cc, singly cylinder, 4-stroke, natural air cooled Load: 75kg Weight: 79kg Wheelbase: 750mm Wheel tread: front: 515; rear: 570 Seat height: 560mm Ground clearance: 80mm Tire: front wheel 145/70-6 rear wheel 145/70-6 Transmission mode: chain Starting system: electric Max. power: 2.3kW / 7000rpm Max. speed: 40km/h Fuel tank capacity: 2L Product size: 123x71x83cm

MOTOR BEACH ( ZC - ATV - 02A )

Engine type:50cc/110cc,single cylinder, 4 stroke,air cooled Transmission mode:Chain Start way:Electric Start Max speed:40km/h Tyre Size:145/70-6 Rear Brake:Disc Ignition type:CDI Carton size:120x72x65cm G.W./N.W.:85/75kg Oil Tank:4.5L

MOTOR BEACH ( ZL - 080M )

ZL-080M Engine:49cc.2stroke.air cooledPacking Size:105*62*50cmG.W./N.W:48/42kgQuantity:80pcs/20’FCL 160PCS/40’FCL 200PCS/40’HQ

MOTOR BEACH ( ZL - 080M - 1 )

ZL-080M-1 Engine:49cc.2stroke.air cooledPacking Size:96*57.5*52cmG.W./N.W:31/28kgQuantity:250pcs/40’HQ

MOTOR BEACH ( ZC - ATV 300 )

ZL-ATV300
1 Engine type: 300cc automatic clutch, water-cooling, with reverse gear, single cylinder, 4 strokes. 2) Displacement: 278ml 3) Max. Power(Kw/r/min): 16.0/6, 500 4) Max. Torque(N. M/r/min): 23.0/5, 500 8) Brake: Front and rear hydraulic disc brake 9) Tire: 23X7.0-10(F), 22X9.0-10(R) 10) Max. Speed: >=90km/h 11) Battery: 12V x 9Ah 15) Suspension: Front and rear hydraulic suspension 16) Ignition type: CDI 17) Start system: Electric start 18) Dimensions: 1, 850 X 1, 250 X 1, 170mm 19) Max. Load: 200Kg

MOTOR BEACH ( ZC - ATV250-1 )

ZL－ATV250-1 Mesurement:1870x1050x1120mmDead weight:210kgMaximum speed:70km/hMaximum loading:165kgBrake model:front/drum/rear/drumStarting model:front/drum/rear/drumStarting model:electrical startingEngine type:double-cylinder,4-stroke,air cooling,reverse gearContainer:12pcs/20'Qty 24pcs/40'Qty 36pcs/40'HQ

MOTOR BEACH ( ZL - ATV200 )

ZL-ATV200 LengthxWidthxHeight(mm):1850*980*1080 Engine Type:Single Cylinder：water-cooling :Four stroke Start Mode:ElectricPower(Kw/r/min):10.3kw/7500r/min Max Speed(km/h):≥70Dry WEIGHT(Kg):150Transmission Mode:ChainBreak Type(F/R):Drum/DiscSpecification:12V 9AhTank capacity(L):4L Specification of tyre: Front-wheel drive:19*7-8 Rear wheel:18*9.50*-8Cylinder DiameterxJourney(mm):63.5*62.2Displacement(ml)L196.98Shift gear:Four gear with reverse gear.manual clutch Parking Trig:Mechanic Locklgnition Mode:C.D.lLoading Capacity(kg):150 Conveyance:Qty/20’GP:31 units Qty/40’GP:64unitsQty/40’HQ:66units

MOTOR BEACH ( ZL - ATV110 )

ZL－ATV110 Engine:4-stroke,air-cooled,single cylinderDisplacement:149ccCompressing ratio:9.0:1Rated power and rotate speed:8.5kw/8500(r/min)Max torque and rotate speed:10.0N.m/8000(r/min)Lgnition type:CDIFuel tank capacity:8LDriving mode:chain/alexStarting system:electricGearshift mode:4 front 1 backMax gradability(degree):22Tire(front/rear):21x8-10/22x11-8Brake system front/rear:drum(manua)drum(foot)Dimension(LXWXH):1670x1100x1065mmDistance(front/rear wheel):830mm/780mmDistance(alex):1050mmMax speed:>50km/hMax loaded:120kgCarton size:1450x830x720mmG.W./N.W:133/110KGQuantity:20Ft/32pcs,40Ft/65pcs,40HQ/66pcs

MOTOR BEACH ( ZL - ATV50 - 1 )

ZL－ATV50-1 Engine:50cc,single cylinder,4 stroke,air cooledMax.speed:>30km/hClimbing ability>150Max.loading:80kgGround clearance:110mmFront/rear wheel:145/70-6;145/70-6Maximum power:2.3kw/8,500rpm approxMaximum torque:2.7N.m/6,500r/minCompression ratio:7:1Transmission:fully auto clutch and 4 speed semi autoStarting aysem:electric startOil tank:3.4LFront/Rear brake:discDimensions:1,120x730x560mmG.w./m.w.:71/63kgContainer:48pcs/20'Qty 102pcs/40'Qty 136pcs/40'Qt

MOTOR BEACH ( ZC - ATV - 05 )

ZC-ATV-05 Engine available: 200cc,Water cool; 250cc, water cool; 200cc, air cool; 250cc, water coolMax speed: 70 km/h Start system: kick start,electric Front wheel: 19.0/7-8 Back wheel: 18.0/9.5-8 Package size: 148x85x86cm N.W/G.W: 150/175kgs Container: 66pcs/40ftHQ

MOTOR BEACH ( ZC - ATV - 07 )

ZC-ATV-07 Parameter of Engine: 250CC/300CC Engine Model :298FMM Engine Style: Single Cylinder, Air-cooled, 4-stroke Ignition: C.D.I. Starting Type: Electric Max. Speed: 90（Km/H） Oil Consumption: ≤365（g/Kw•H） Clutch: Manual clutch Transmission: 5 speed,Rotary Parameter of Motorcycle Vehicle dimension: 1840X1080X1100（L×W×H mm）Packing dimension: 1680X1150X880（L×W×H mm）Gross Weight: 230（Kg） NET Weight: 190（Kg） Tyre and Rim: F. ：AT23×7-10 / R. ：AT22×10-10
Brake Style: F. Disc / R. Disc Oiltank Capacity: 11（L） Max. Load: 165（Kg）

MOTOR BEACH ( ZC - ATV - 03A )

ZC-ATV-03A Engine type:50cc/110CC,single cylinder, air coolMax speed: 70 km/h Start mothod: Electric start Front/Rear wheel:725/710mmFront/Rear Tyre:19x7-8 18x9.5-8Front/Rear Brake:Drun/DiseLgnition type:CDLOil Tank:5.4LCarton size: 148x84x76cm N.W/G.W: 140/125kgs Max loading capacity:150kg

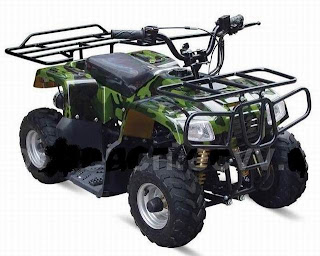

MOTOR BEACH ( ZC - ATV - 04 )

ZC-ATV-04 packing size:(L*W*H):1200*720*650Displacement:50/110ccEngine type:Forced-air-cooled 4-strokeWheel base(mm):500Ground clearance(mm):100Bore&Stroke(mm):39mm*41.4mmStarting:Electric Loading Weight(kg):40Fuel Capacity(L):3.4Max speed(km/h):40Max.power(kw/r/min):2.0/7500Tire(F and R):145/70-6Brake(R):disk

MOTOR BEACH ( ZC - Y - 105 )

ZC-Y-105 Motor Power:49ccEngine:single cylinder,two stroke, air-coldTire: 9 inchesG.W.:45kg N.W.:39kgOil tank capacity:1LOil type:petrol 25:1 engine oil mixingRun distamce:20kmLoad:＜75KGSCarton size: 98 X 58 X 55CM/ Front brake:disc;Rear brake:discFront suspension system:teltscoping fork

MOTOR BEACH ( ZC - Y - 103A )

ZC-Y-103A Motor Power:49ccEngine:single cylinder,two stroke, air-cooldGoal consumer:＞14yeas oldTire: 9 inchesG.W.:40kg N.W.:35kgOil tank capacity:1LOil type:petrol 25:1 engine oil mixingRun distamce:20kmLoad:＜75KGSCarton size: 98x58x55cmFront brake:disc;Rear brake:discFront suspension system:teltscoping fork

MOTOR BEACH ( ZC - Y - 103 )

ZC-Y-103 Motor Power:49ccEngine:single cylinder,two stroke, air-cooldGoal consumer:＞14yeas oldTire: 9 inchesG.W.:45kg N.W.:39kgOil tank capacity:1LOil type:petrol 25:1 engine oil mixingRun distamce:20kmLoad:＜75KGSCarton size: 98 X 58 X 55CMFront brake:disc;Rear brake:discFront suspension system:teltscoping fork

GO CART ( ZC-GK-06 )

Engine: 49cc,Single cylinder,forced air cooling,2-stroke 110cc 4-stroke Compress ratio: 8.0:1 Rated power and rotate speed:1.45kw/5500(r/min) Max torque and rotate speed:2.4N.m/5000(r/min) Ignifion type:CDI Fuel tank capacity:2L Driving mode:chain Starting system:electric/pull start/remote-control Steering angel(degree):30 Tire(front/rear):4.10-6/13x5-6 Brake system(rear):disc brake Mini ground clearance:170mm Dimension(LxWxH):150x80x88.5cm Distance(front/rear wheel):80/70cm Distance(alex)106cm Max speed:30km/h MAX LOADED:100KG Carton size:156x78x63cm G.W./N.W.:90/75kg Quantity:20Ft/30pcs,40Ft/66pcs,40HQ/81pcs Available color:silver,red,yellow, blue,green,black

SEAT : 1

GO KART ( ZC-GK-05 )

Engine type: 110cc, single cylinder,4-stroke air-cooled,three speed with reverse Rating Power: 4.6kw/7500rpm Max torque: 6.5N.m/7500rpm Transmission mode: Chain drive Gas tank capacity/Fuel: 2 L/Unleaded gasoline above No.90 Start way: Electric start Battery: 12V.9Ah Max. speed: 50 km/h Wheel bases: 1270mm Distance between wheel（F/R）: 1010/ 820mm Front /Rear tire： 14.5x 7- 6/ 16 x 8- 7 Brake(front/rear): Hydraulic brake N.W./G.W.：148kg/182kg Max. load capacity: 150kg Overall size: 175x119x135.5mm Carton size: 175x114x63.5mm

SEAT : 2
